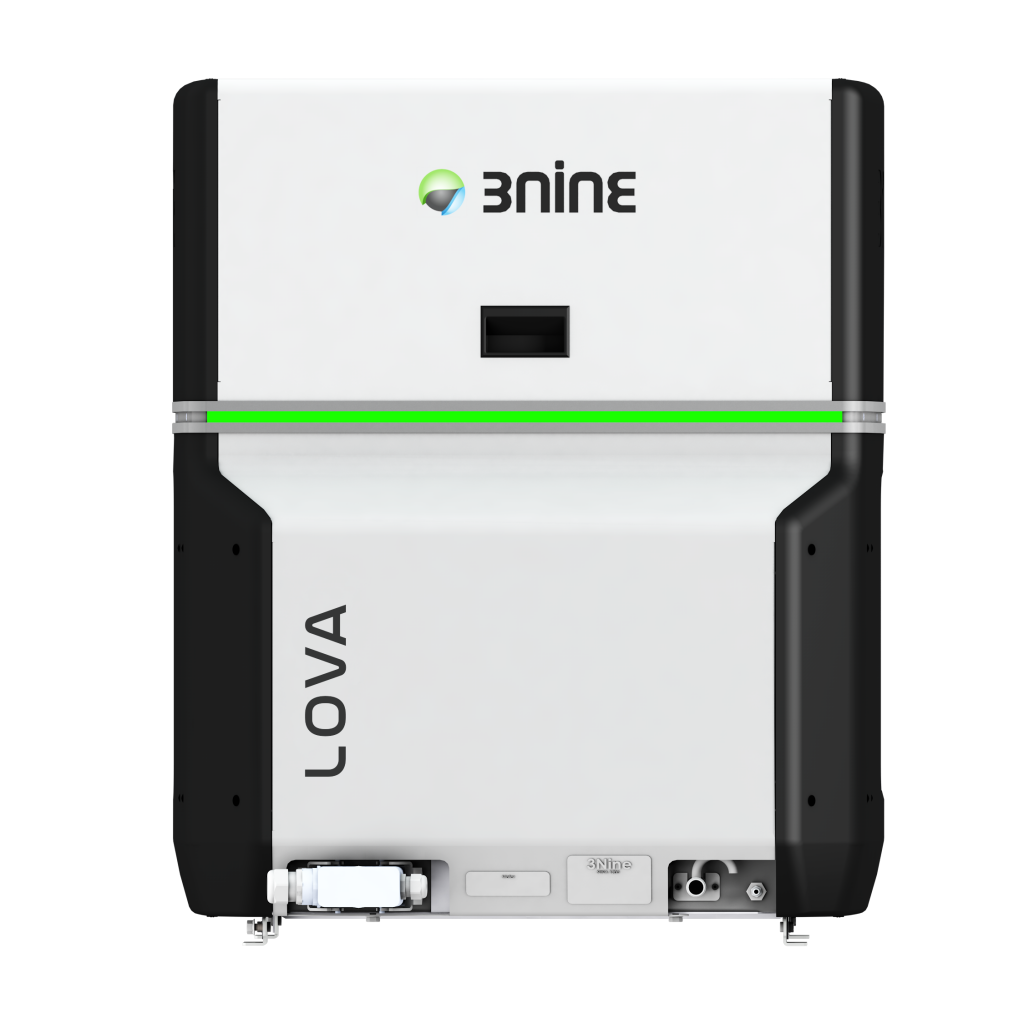

The oil mist eliminator Lova effectively cleans the oil mist formed during metal processing and provides clean air into the workshop. With the Lova you recycle and reuse almost all of your oil/coolant which was a mist.

The Lova is suitable for all applications involving processes using oil, coolants or other lubricants. Even with tough applications such as grinding and machining of cast iron we provide 99.95% particle-free air. Read more about how this is possible under the Technology section.

The Lova works on all machine tools with a cabin volume of up to 318 CF (9 m³ ) and can be installed directly on top of the machine tool, on the side, on a wall/column or on a pillar stand. See examples on how others have installed their Lova further down on this page

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

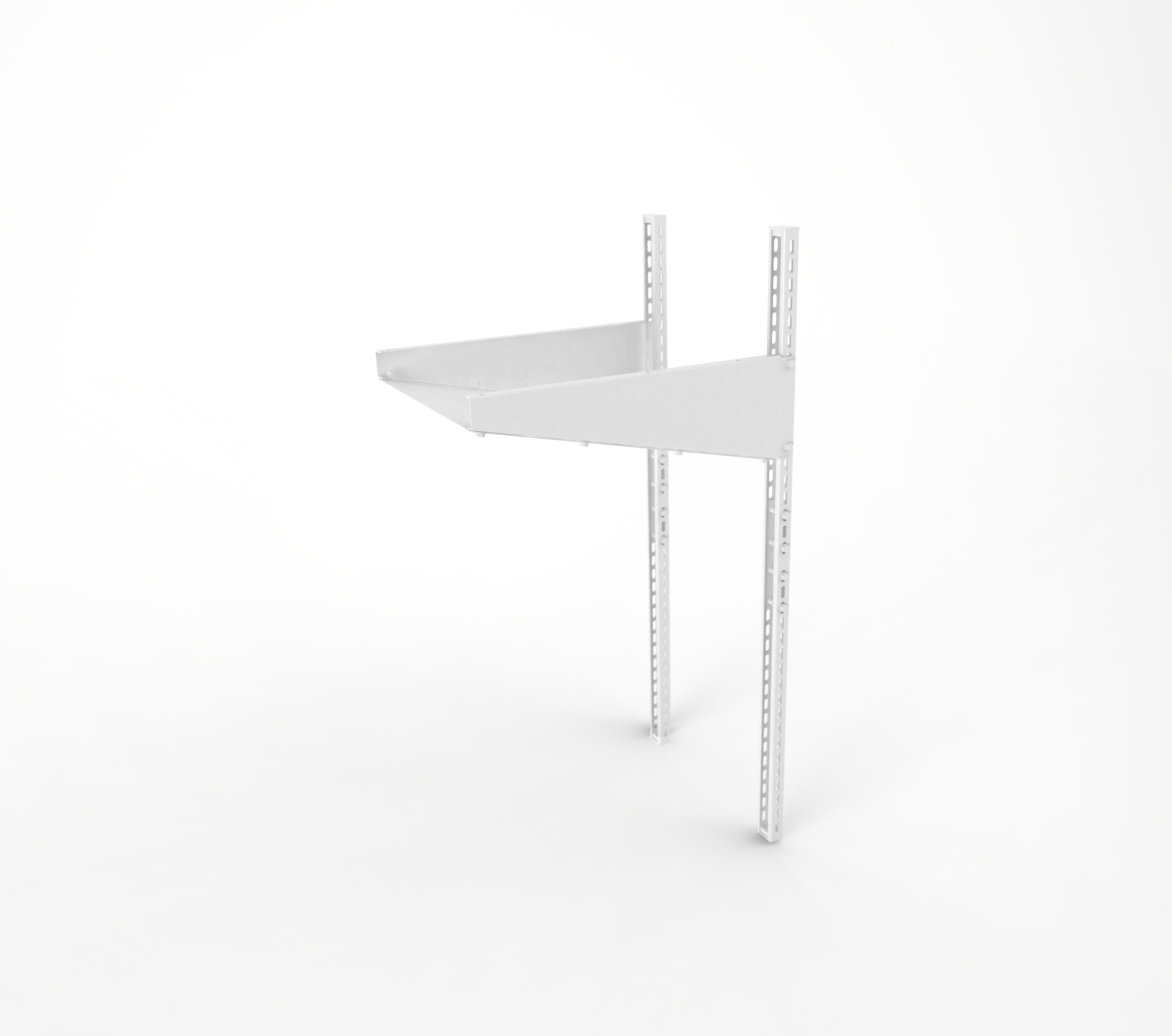

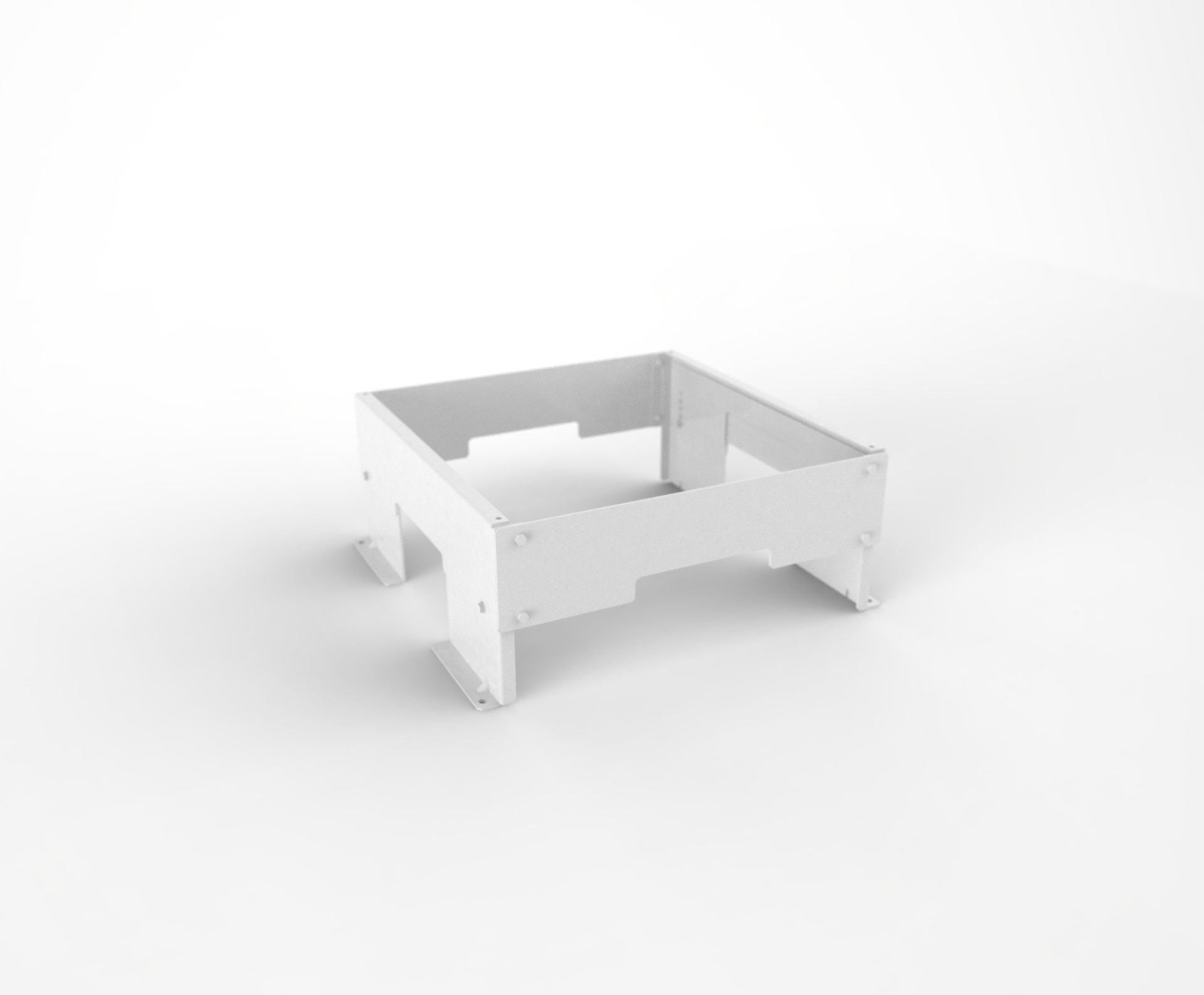

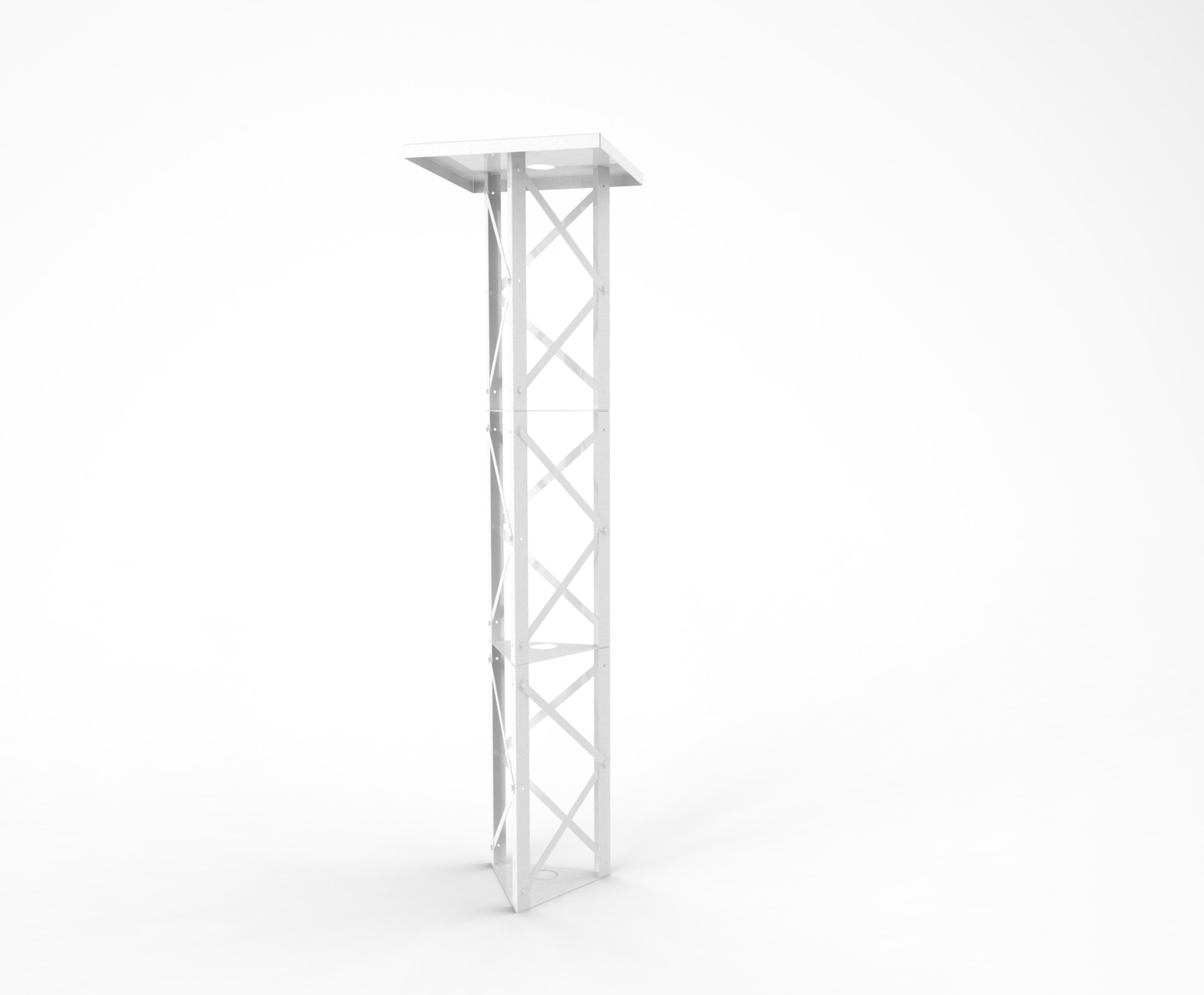

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<9m3

Airflow

900m3/h

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<320CF

Airflow

528CFM

Unit

Lova 900

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<9m3

Airflow

900m3/h

Operating condition

5-50°C

Electric power supply

3-phase, 380-480V, 50/60Hz, 6A

Motor rating

1.5kW

Rated current

3.3A

Speed

6700 rpm

Lenght

777 mm

Depth

833 mm

Height

936 mm

Weight

113 kg

Inlet pipe

Ø 200 mm

Sound level

<70 db (A)

Unit

Lova 900

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<320CF

Airflow

528CFM

Operating condition

41-122 F

Electric power supply

3-phase, 208-240V, 50/60Hz, 6A

Motor rating

1.5kW

Rated current

2.8A (230V) – 5.7A (460V)

Speed

6700 rpm

Lenght

30.5”

Depth

32.8”

Height

36.9”

Weight

249 lbs

Inlet pipe

Ø 8”

Sound level

<70 db (A)

The oil mist eliminator Lova effectively cleans the oil mist formed during metal processing and provides clean air into the workshop. With the Lova you recycle and reuse almost all of your oil/coolant which was a mist.

The Lova is suitable for all applications involving processes using oil, coolants or other lubricants. Even with tough applications such as grinding and machining of cast iron we provide 99.95% particle-free air. Read more about how this is possible under the Technology section.

The Lova works on all machine tools with a cabin volume of up to 318 CF (9 m³ ) and can be installed directly on top of the machine tool, on the side, on a wall/column or on a pillar stand. See examples on how others have installed their Lova further down on this page

Unit

Lova 900

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<9m3

Airflow

900m3/h

Operating condition

5-50°C

Electric power supply

3-phase, 380-480V, 50/60Hz, 6A

Motor rating

1.5kW

Rated current

3.3A

Speed

6700 rpm

Lenght

777 mm

Depth

833 mm

Height

936 mm

Weight

113 kg

Inlet pipe

Ø 200 mm

Sound level

<70 db (A)

Unit

Lova 900

Application

Cleaning oil mist (cutting fluid/coolant) from the workshop environment

Mounting

Directly on top, On a pillar stand, On a wall/column stand

Max cabin size

<320CF

Airflow

528CFM

Operating condition

41-122 F

Electric power supply

3-phase, 208-240V, 50/60Hz, 6A

Motor rating

1.5kW

Rated current

2.8A (230V) – 5.7A (460V)

Speed

6700 rpm

Lenght

30.5”

Depth

32.8”

Height

36.9”

Weight

249 lbs

Inlet pipe

Ø 8”

Sound level

<70 db (A)

Installation images

Peter Doyle, President & CEO, Hirsh Precision

Hirsh Precision

Hirsh Precision has used 3Nine’s Mist Recovery System on our shop floor for years. Their Lina 500 model in particular is the most reliable and low maintenance mist collector we use. As our team is preparing to add four new machines to our facility, 3Nine’s Lina 500 Mist Recovery System will be our air cleaner of choice.
