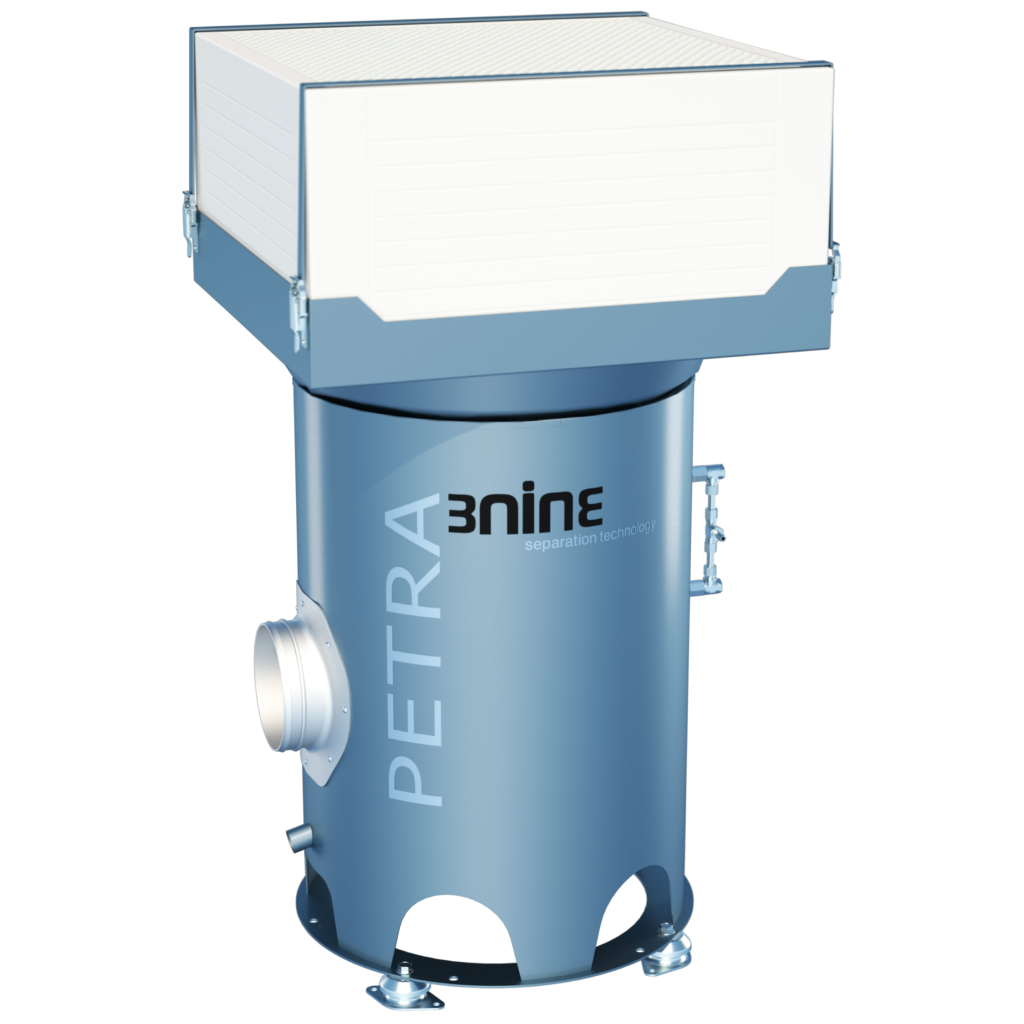

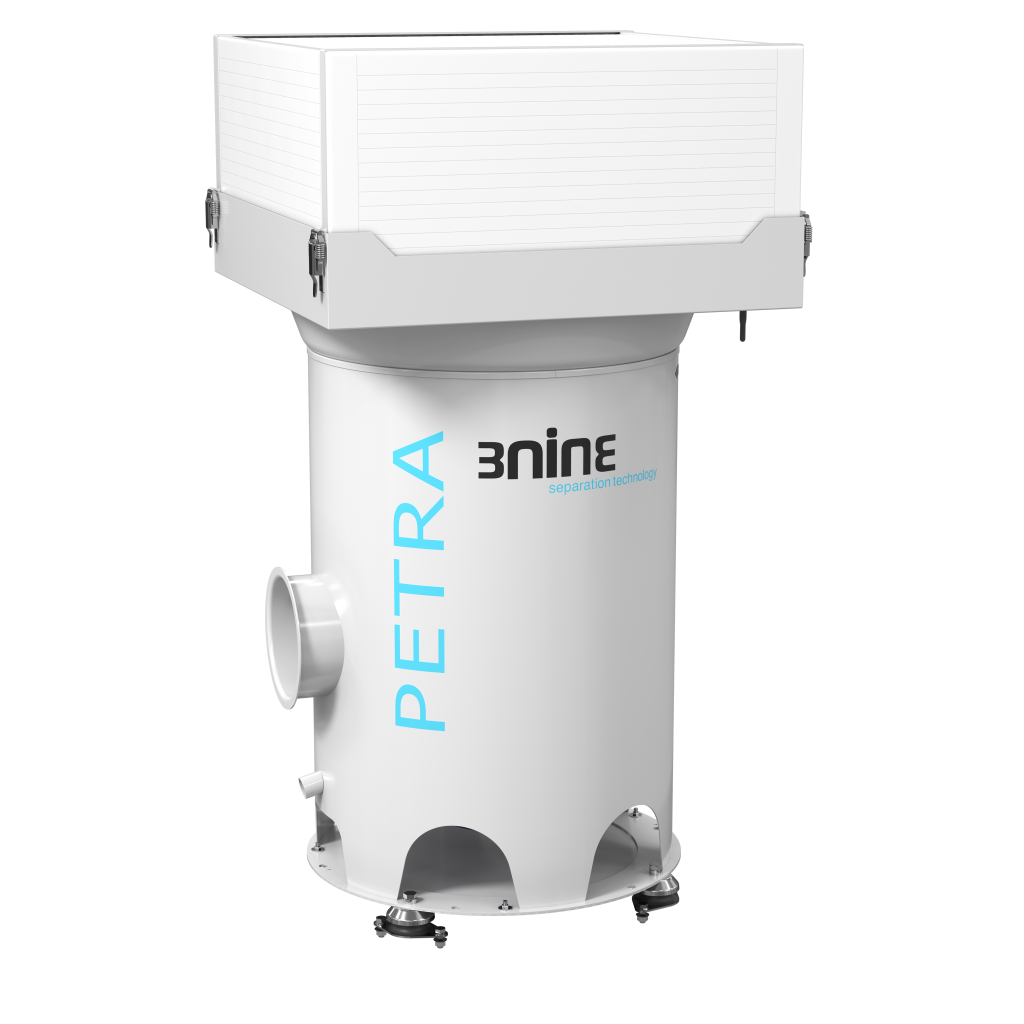

Petra 1000
The oil mist eliminator Petra is specifically designed to handle applications with a very high solid content, such as CNC grinding, polishing applications, machining of cast iron and heat treatment (quench oil) applications.
The Petra develops 600 CFM (1000 m³/h) and is suitable for all machine tools with a maximum cabin size of 353 CF (10 m³). It can easily be installed on most machine tools, which saves floor space and eliminates unnecessary pipe work and expensive pipe maintenance. This is important because these types of applications produce a great deal of the solid particles that can drop out in the pipes. It also makes it easier to move the machine tool when production requirements change.
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10m3 |
| Airflow | 1000m3/h |
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <353CF |
| Airflow | 600CFM |
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10m3 |
| Airflow | 1000m3/h |
| Operating condition | 5-50°C |
| Electric power supply | 16A, 3-phase, 400V, 50Hz |
| Motor rating | 1.5kW |
| Rated current | 3.2A |
| Speed | 2835 rpm |
| Height with HEPA | 1145 mm |
| Diameter | Ø 500 mm |
| Weight | 96 kg |
| Inlet pipe | Ø 161 mm |
| Sound level | <70 db (A) |
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <353CF |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Electric power supply | 30/15A, 3-phase, 230/460V, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3440 rpm |
| Height with HEPA | 45” |
| Diameter | Ø 19.7’’ |
| Weight | 211 lbs |
| Inlet pipe | Ø 6” |
| Sound level | <70 db (A) |
The oil mist eliminator Petra is specifically designed to handle applications with a very high solid content, such as CNC grinding, polishing applications, machining of cast iron and heat treatment (quench oil) applications.
The Petra develops 600 CFM (1000 m³/h) and is suitable for all machine tools with a maximum cabin size of 353 CF (10 m³). It can easily be installed on most machine tools, which saves floor space and eliminates unnecessary pipe work and expensive pipe maintenance. This is important because these types of applications produce a great deal of the solid particles that can drop out in the pipes. It also makes it easier to move the machine tool when production requirements change.
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <10m3 |
| Airflow | 1000m3/h |
| Operating condition | 5-50°C |
| Electric power supply | 16A, 3-phase, 400V, 50Hz |
| Motor rating | 1.5kW |
| Rated current | 3.2A |
| Speed | 2835 rpm |
| Height with HEPA | 1145 mm |
| Diameter | Ø 500 mm |
| Weight | 96 kg |
| Inlet pipe | Ø 161 mm |
| Sound level | <70 db (A) |
| Unit | Petra 1000 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <353CF |
| Airflow | 600CFM |
| Operating condition | 41-122 F |
| Electric power supply | 30/15A, 3-phase, 230/460V, 60Hz |
| Motor rating | 1.5kW |
| Rated current | 5.6A (230V) – 3.6A (460 V) |
| Speed | 3440 rpm |
| Height with HEPA | 45” |
| Diameter | Ø 19.7’’ |
| Weight | 211 lbs |
| Inlet pipe | Ø 6” |
| Sound level | <70 db (A) |
Installation images
