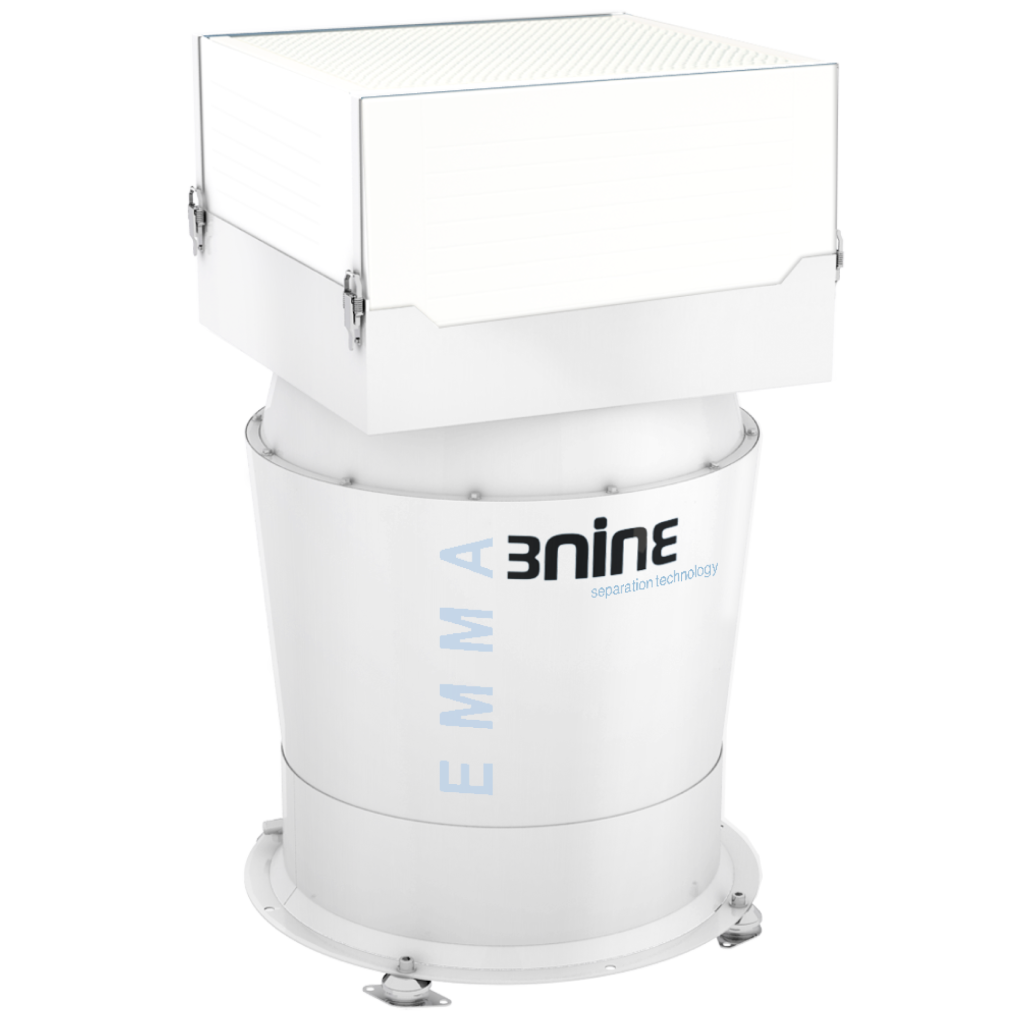

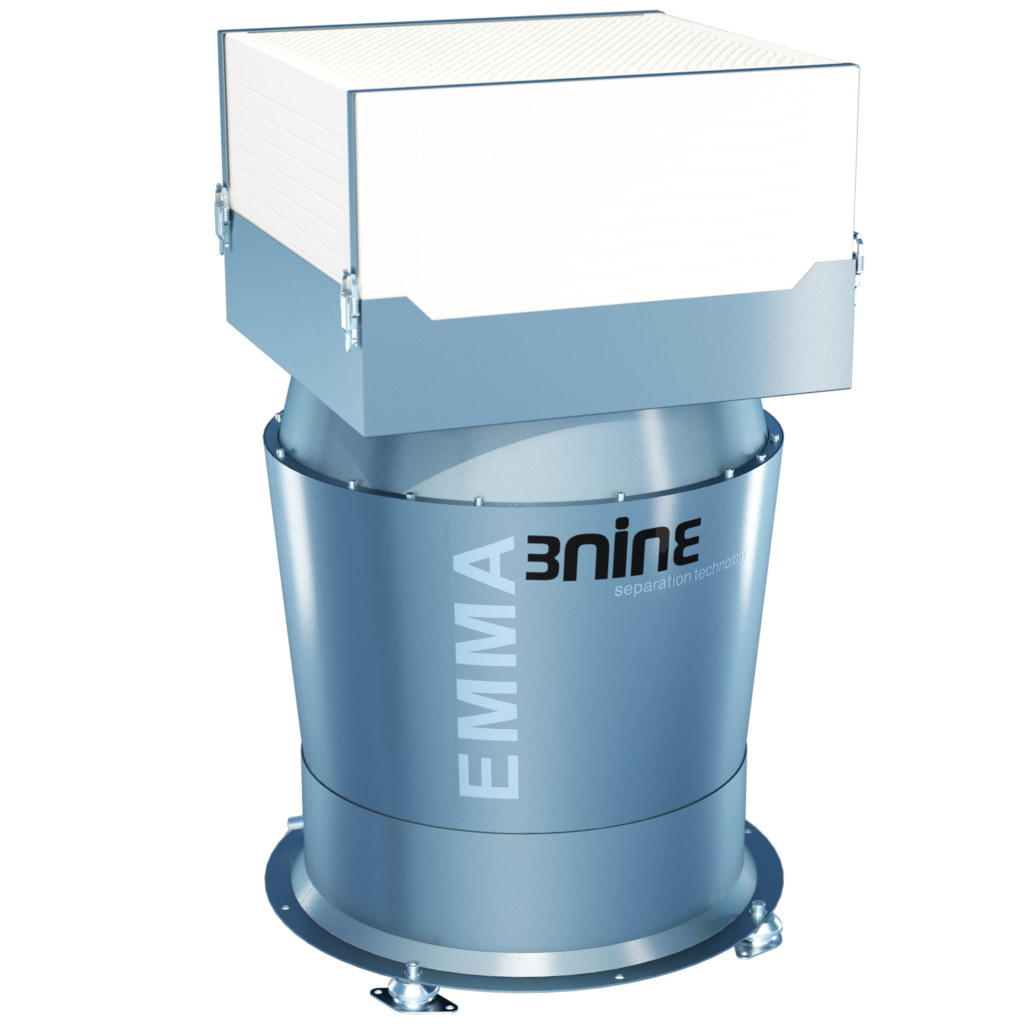

Emma 2500
The oil mist eliminator Emma is the largest unit in the 3nine BLUE LINE Series and was designed specifically for applications where high airflow is essential, such as very large cabins or open machine tools.
The Emma develops 1,500 CFM/2500 m³/h and works on enclosed cabins of up to 710 CF/20m³. Multiple Emma’s can be used to create a solution for flow rates needed above 1,500 CFM/2500 m³/h. Like the other BLUE LINE products, the Emma employs disc stack technology, so its maintenance requirements are minimal and efficiency is high and consistent.
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|

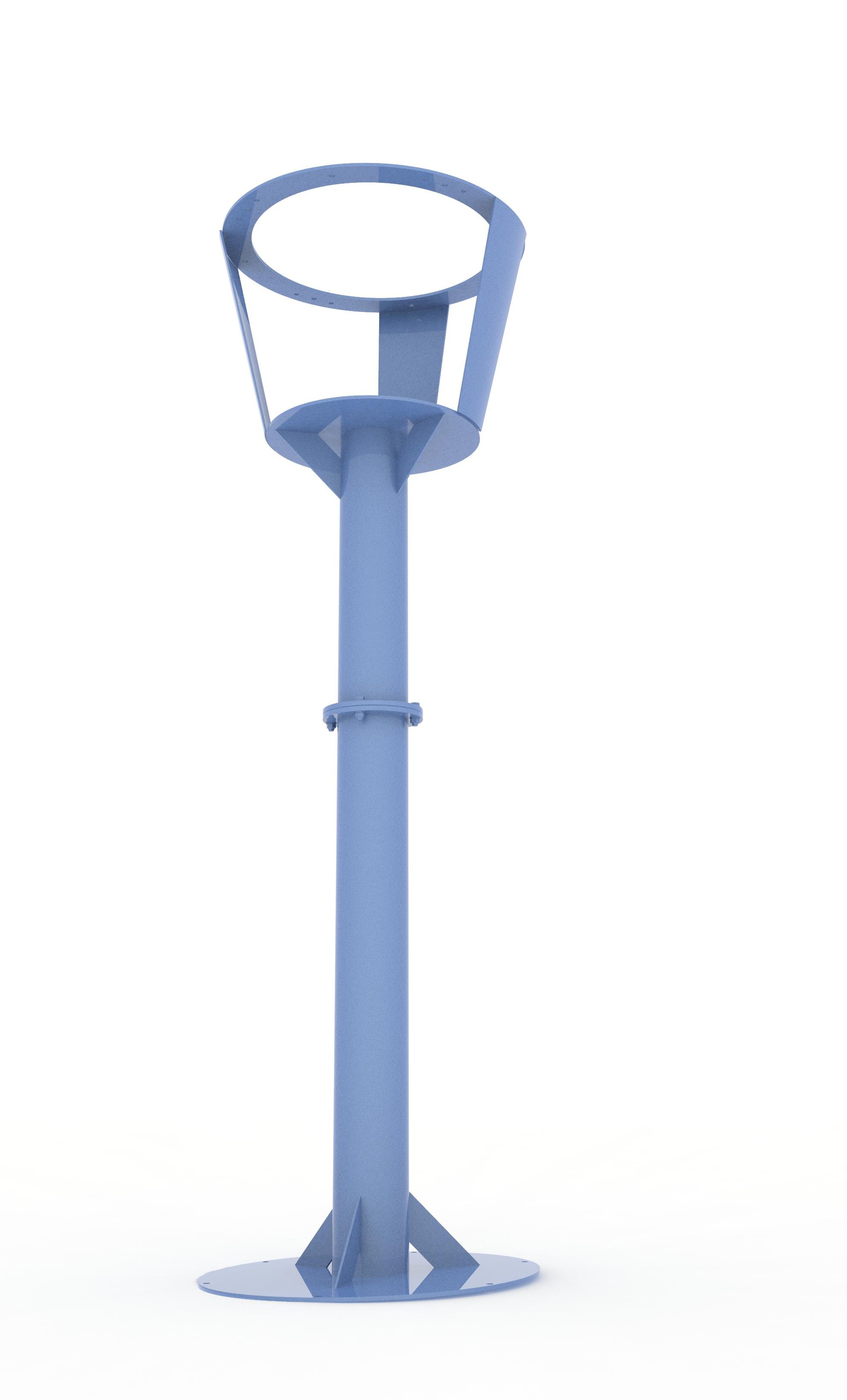

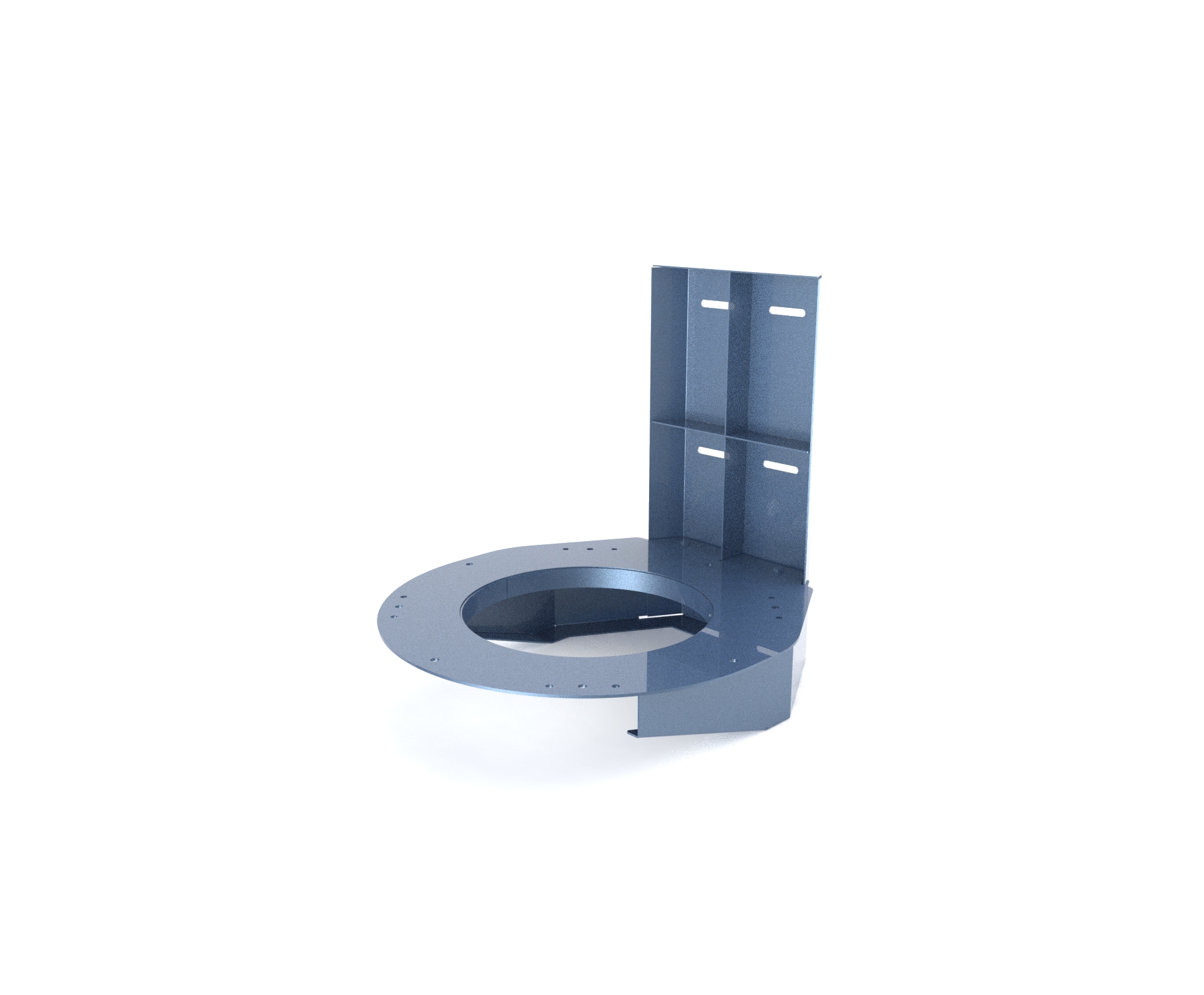

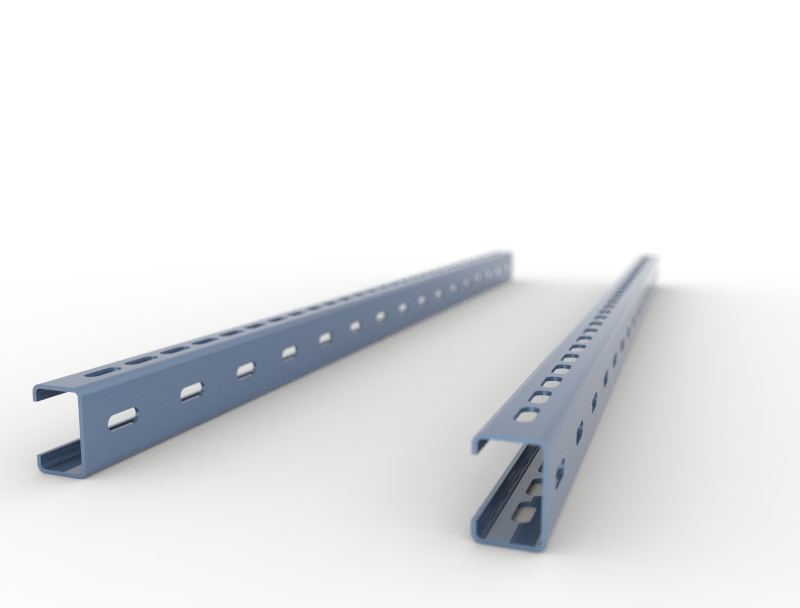

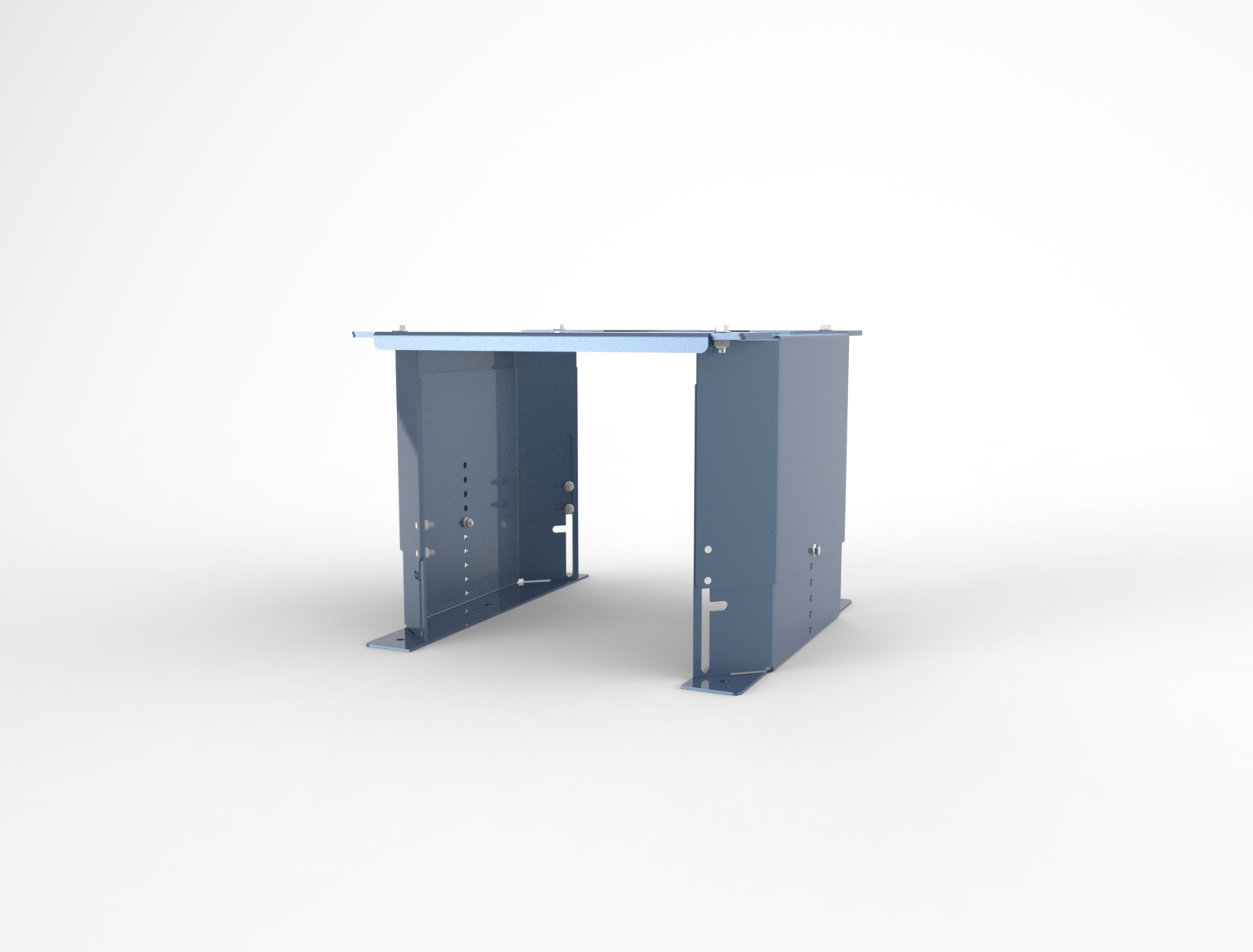

| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <20m3 |
| Airflow | 2500m3/h |
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <710CF |
| Airflow | 1500CFM |
| Unit | Emma 2500 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <20m3 |
| Airflow | 2500m3/h |
| Operating condition | 5-50°C |
| Electric power supply | 16A, 3-phase, 400V, 50Hz |
| Motor rating | 5.5kW |
| Rated current | 11.3A |
| Speed | 2600 rpm |
| Height with HEPA | 1145 mm |
| Diameter | Ø 670 mm |
| Weight | 131 kg |
| Inlet pipe | Ø 316 mm |
| Sound level | <70 db (A) |
| Unit | Emma 2500 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <710CF |
| Airflow | 1500CFM |
| Operating condition | 41-122 F |
| Electric power supply | 30/15A, 3-phase, 230/460V, 60Hz |
| Motor rating | 5.5kW |
| Rated current | 11.7A |
| Speed | 3400 rpm |
| Height with HEPA | 45” |
| Diameter | Ø 26.4’’ |
| Weight | 288 lbs |
| Inlet pipe | Ø 12” |
| Sound level | <70 db (A) |
The oil mist eliminator Emma is the largest unit in the 3nine BLUE LINE Series and was designed specifically for applications where high airflow is essential, such as very large cabins or open machine tools.
The Emma develops 1,500 CFM/2500 m³/h and works on enclosed cabins of up to 710 CF/20m³. Multiple Emma’s can be used to create a solution for flow rates needed above 1,500 CFM/2500 m³/h. Like the other BLUE LINE products, the Emma employs disc stack technology, so its maintenance requirements are minimal and efficiency is high and consistent.
| Unit | Emma 2500 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <20m3 |
| Airflow | 2500m3/h |
| Operating condition | 5-50°C |
| Electric power supply | 16A, 3-phase, 400V, 50Hz |
| Motor rating | 5.5kW |
| Rated current | 11.3A |
| Speed | 2600 rpm |
| Height with HEPA | 1145 mm |
| Diameter | Ø 670 mm |
| Weight | 131 kg |
| Inlet pipe | Ø 316 mm |
| Sound level | <70 db (A) |
| Unit | Emma 2500 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <710CF |
| Airflow | 1500CFM |
| Operating condition | 41-122 F |
| Electric power supply | 30/15A, 3-phase, 230/460V, 60Hz |
| Motor rating | 5.5kW |
| Rated current | 11.7A |
| Speed | 3400 rpm |
| Height with HEPA | 45” |
| Diameter | Ø 26.4’’ |
| Weight | 288 lbs |
| Inlet pipe | Ø 12” |
| Sound level | <70 db (A) |
