Nova 300
The Nova is the smallest oil mist eliminator in the GREEN LINE series and works on all machine tools with a cabin volume of up to 70 CF (2 m³).
The Nova will effectively clean the oil mist/oil smoke formed during processing on your smaller machine tools. Besides getting clean air in the workshop, the Nova will also recycle almost all of your oil or coolant for reuse.

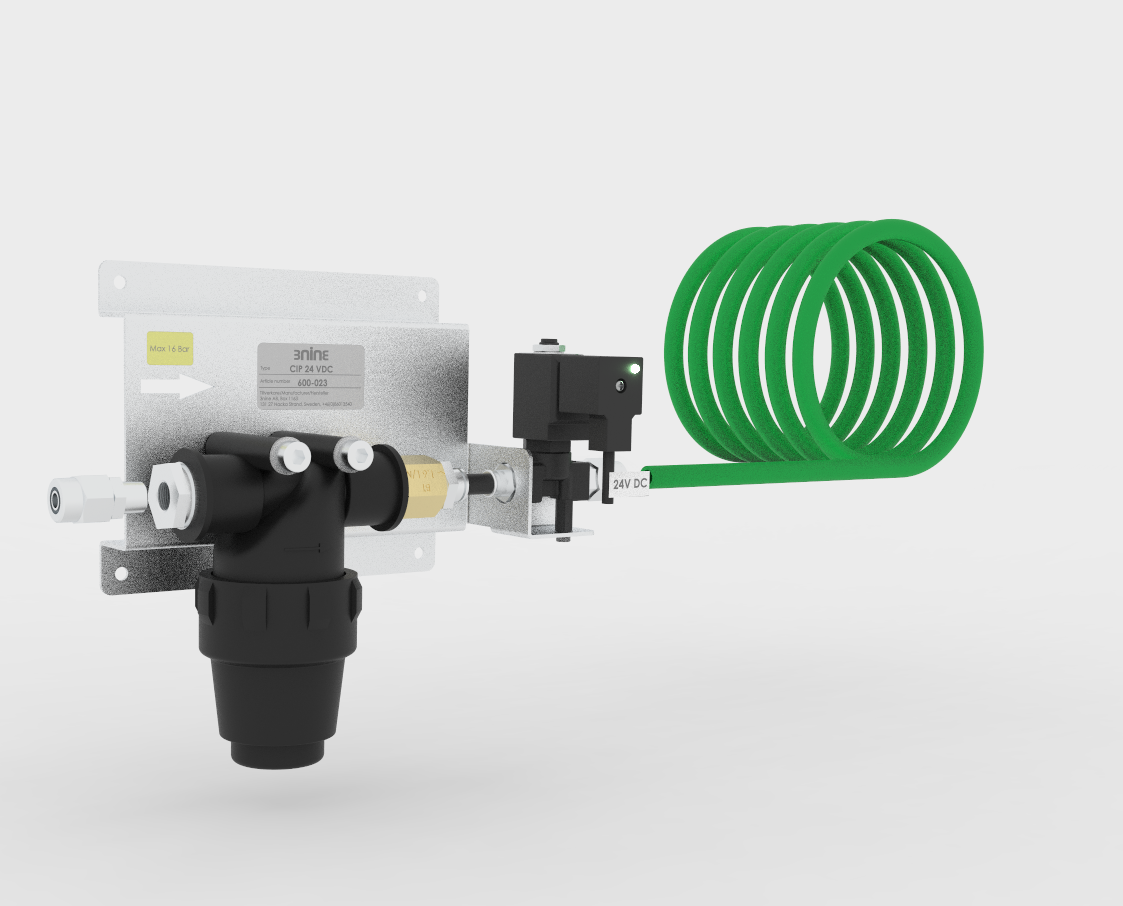

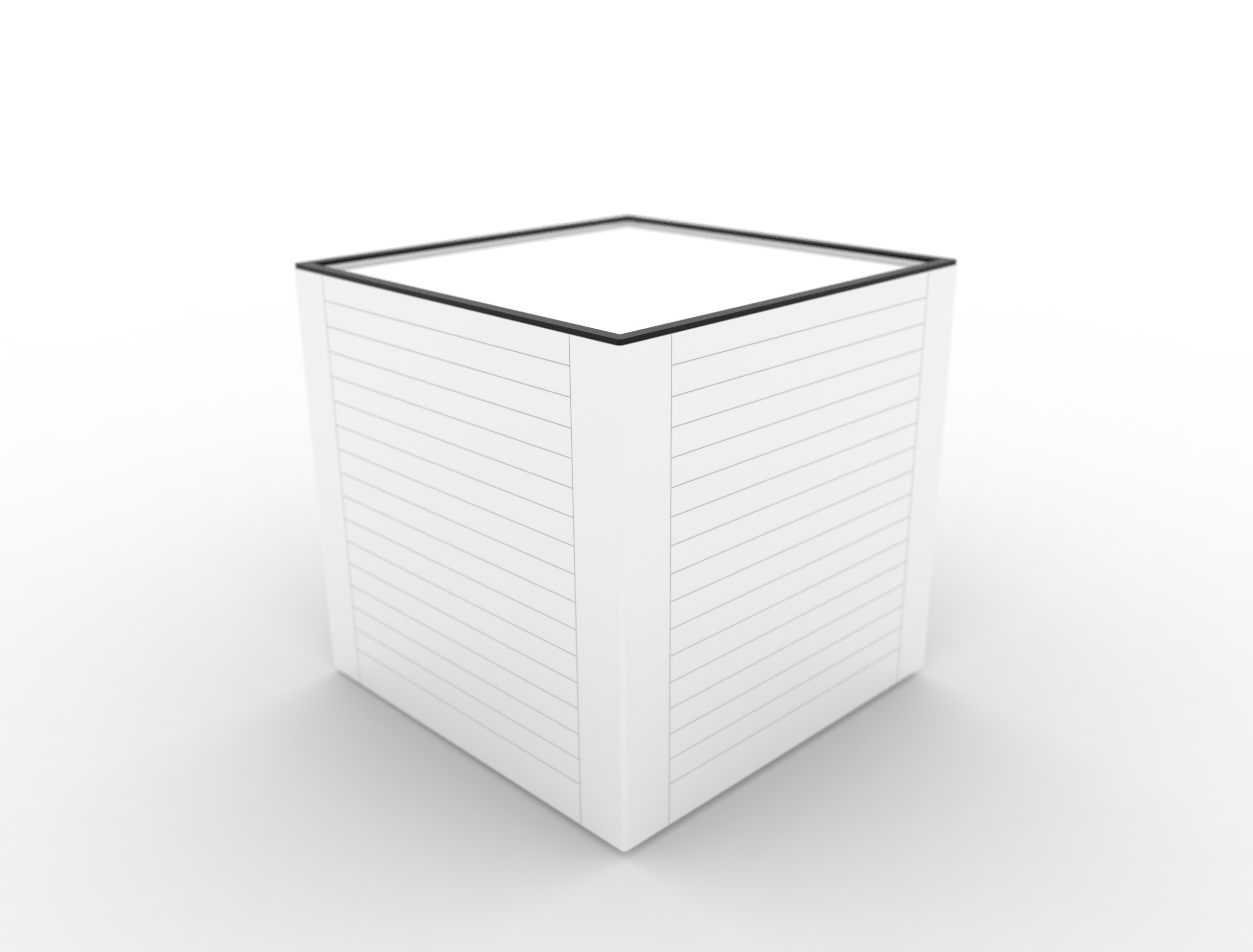

The Nova is available in two versions – Advanced and Basic. The Nova Advanced is controlled by a frequency converter which incorporates more advanced monitoring of the HEPA-filter, pressure drops and the drive belt, as well as controls the CIP system. The Nova Basic is controlled by a built-in circuit breaker and has a pressure switch that monitors the HEPA-filter.
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|

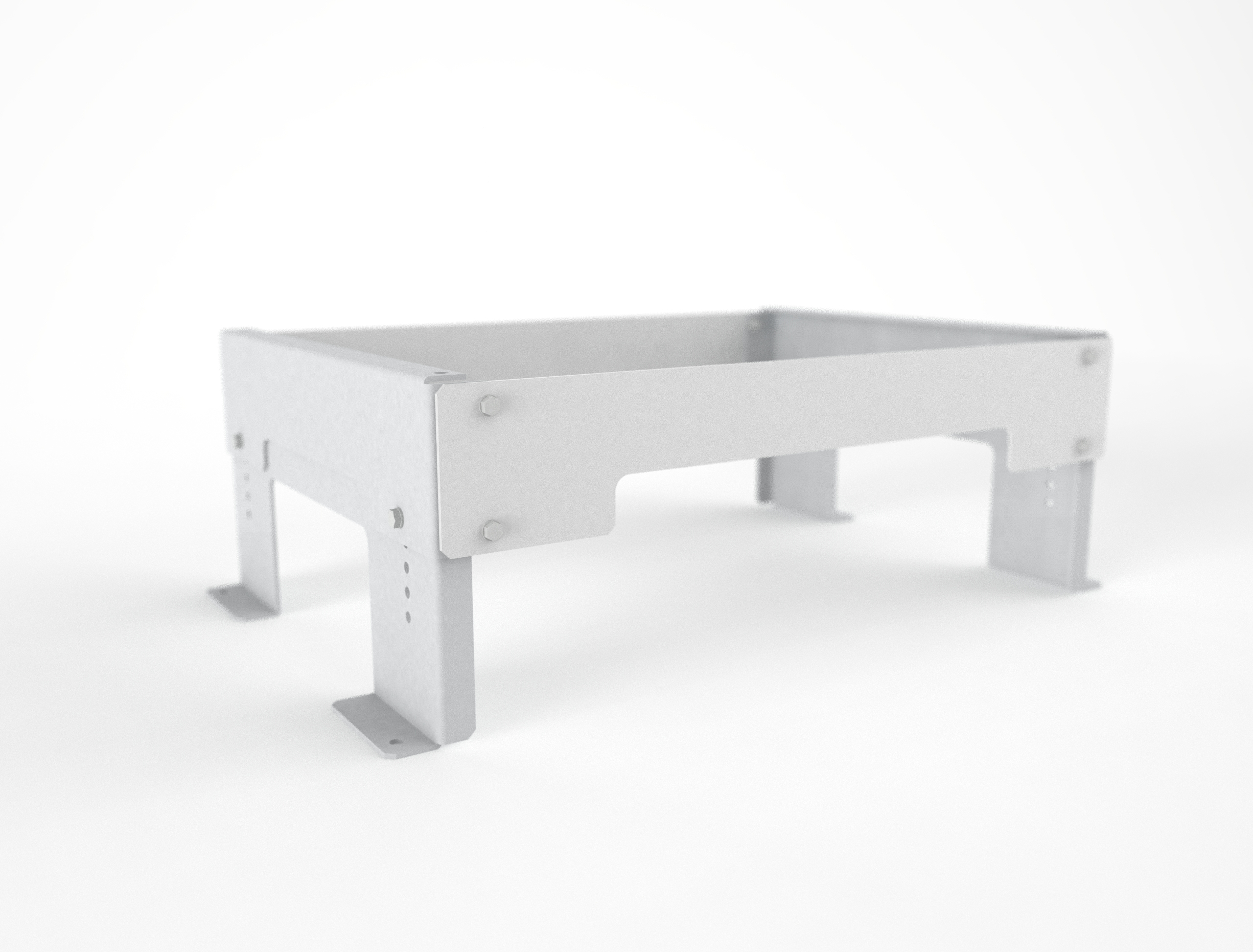

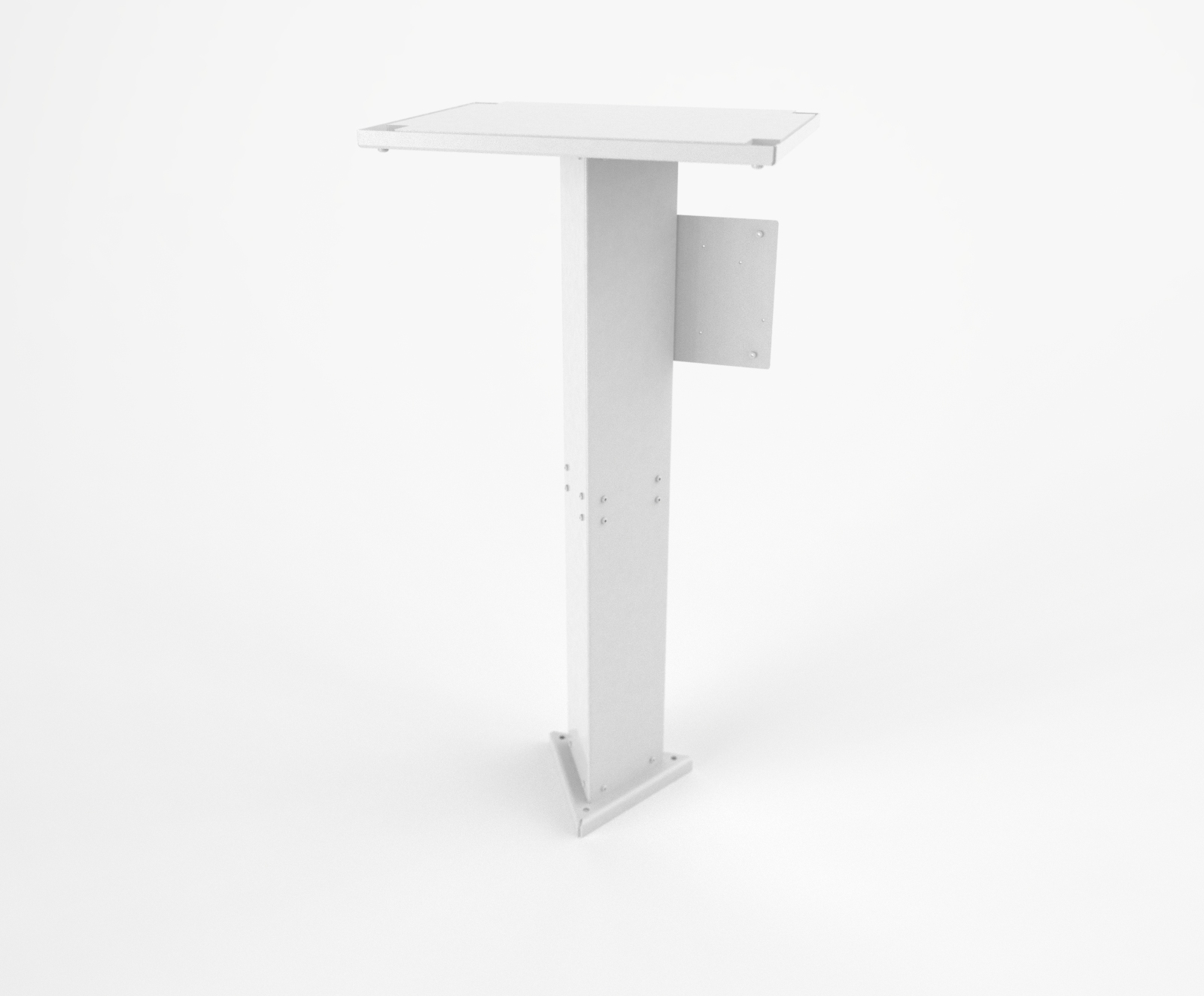

| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <2m3 |
| Airflow | 300m3/h |
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
|---|---|
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | 70 CF |
| Airflow | 176 CFM |
| Unit | Nova 300 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <2m3 |
| Airflow | 300m3/h |
| Operating condition | 5-50°C |
| Power supply (basic) | 3-phase, 280-400V, 50 Hz, 6A |
| Power supply (advanced) | 3-phase, 380-480V, 50/60 Hz, 6A |
| Motor rating | 0.37kW |
| Rated current | 1A |
| Speed | 6700 rpm |
| Lenght | 694 mm |
| Depth | 475 mm |
| Height | 550 mm |
| Weight | 35 kg |
| Inlet pipe | Ø 100 mm |
| Sound level | <65 dB (A) |
| Unit | Nova 300 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | 70 CF |
| Airflow | 176 CFM |
| Operating condition | 41-122 F |
| Power supply (basic) | 3-phase, 230/460V, 60 Hz, 6A |
| Power supply (advanced) | 3-phase, 208-240V, 50/60 Hz, 6A |
| Motor rating | 0.37kW |
| Rated current | 1.9A (230V) – 1.1A (460V) |
| Speed | 6700 rpm |
| Lenght | 27.3” |
| Depth | 18.7” |
| Height | 21.6” |
| Weight | 77.2 lbs |
| Inlet pipe | Ø 4” |
| Sound level | <65 dB (A) |
The Nova is the smallest oil mist eliminator in the GREEN LINE series and works on all machine tools with a cabin volume of up to 70 CF (2 m³).
The Nova will effectively clean the oil mist/oil smoke formed during processing on your smaller machine tools. Besides getting clean air in the workshop, the Nova will also recycle almost all of your oil or coolant for reuse.
The Nova is available in two versions – Advanced and Basic. The Nova Advanced is controlled by a frequency converter which incorporates more advanced monitoring of the HEPA-filter, pressure drops and the drive belt, as well as controls the CIP system. The Nova Basic is controlled by a built-in circuit breaker and has a pressure switch that monitors the HEPA-filter.
| Unit | Nova 300 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | <2m3 |
| Airflow | 300m3/h |
| Operating condition | 5-50°C |
| Power supply (basic) | 3-phase, 280-400V, 50 Hz, 6A |
| Power supply (advanced) | 3-phase, 380-480V, 50/60 Hz, 6A |
| Motor rating | 0.37kW |
| Rated current | 1A |
| Speed | 6700 rpm |
| Lenght | 694 mm |
| Depth | 475 mm |
| Height | 550 mm |
| Weight | 35 kg |
| Inlet pipe | Ø 100 mm |
| Sound level | <65 dB (A) |
| Unit | Nova 300 |
|---|---|
| Application | Cleaning oil mist (cutting fluid/coolant) from the workshop environment |
| Mounting | Directly on top, On a pillar stand, On a wall/column stand |
| Max cabin size | 70 CF |
| Airflow | 176 CFM |
| Operating condition | 41-122 F |
| Power supply (basic) | 3-phase, 230/460V, 60 Hz, 6A |
| Power supply (advanced) | 3-phase, 208-240V, 50/60 Hz, 6A |
| Motor rating | 0.37kW |
| Rated current | 1.9A (230V) – 1.1A (460V) |
| Speed | 6700 rpm |
| Lenght | 27.3” |
| Depth | 18.7” |
| Height | 21.6” |
| Weight | 77.2 lbs |
| Inlet pipe | Ø 4” |
| Sound level | <65 dB (A) |
Installation images
Bargo Engineering Inc., USA
”Upon first hearing about the technology, we thought this was just another mist collector. We have tried others in the past that worked for a short time and clogged up with cutting fluid and did very little to improve the air quality. The 3nine Mist Separator however, have a very high purification rate and minimum filter replacement (2 years with one filter). The machine operator as well as other staff members have noticed a significant improvement in the air quality. Thank you for introducing us to the 3nine product line.”
